Why Choose EPIC Pad PrintingMachines for Toys?
EPIC Pad Printing Machines for Toys are a range of European-inspired equipment designed to meet high industrial demands. Engineered for energy efficiency and customization, these machines fulfill diverse printing needs while delivering excellent speed, pressure, and accuracy for single or multiple prints. They easily integrate into automated production lines via a 37-pin D-SUB connector. Additionally, they offer a wide range of optional configurations, including rotary indexers, pre- and post-substrate treatment modules, ink residue pick-up systems, viscosity measurement, and thinner metering pumps.

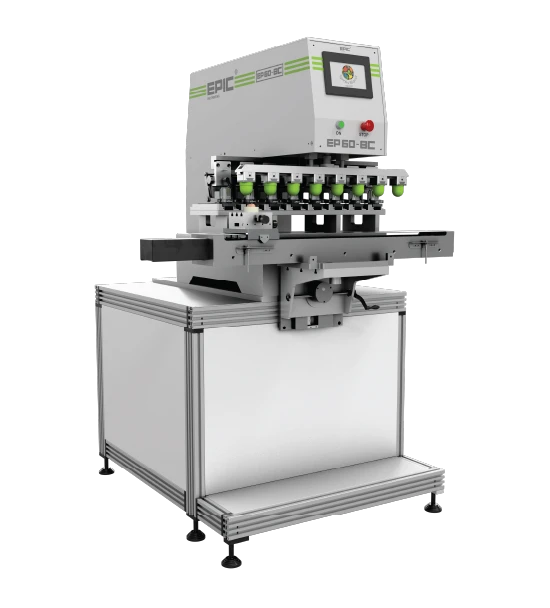

High-Precision Multi-Color Capability:EPIC 8-Color PadPrinting System
Our EPIC 8-Color Pad Printing Machine delivers vibrant prints and precise registration across complex multi-color designs.
Built for fine-detail execution, this machine can accurately print features as small and intricate as a doll's eye. It consistently applies multiple distinct colors in a single pass onto curved, recessed, or uneven toy surfaces, ensuring razor-sharp clarity across high-volume production runs.
Pad Printing Machines
for Toys
Features &Advantages
These machines are compact, simple and eco-friendly.
Low ink consumption – Start with just15 grams(60 cup).
High speed and excellent
printing
Every time, image registration is precise and excellent. This is due to high end milled parts in very hard & tempered metals.
Highest tampon pressure in a similar sized machine to use22 Shore A silicone rubber pads. Harder pads generally produce better prints.
An electro-pneumatic drive with aPLC control and a finger touch HMIfrom Europe.
Key Specifications& Capabilities
Non-magnetic ink cup rings made of tungsten carbidewith 80 HRC hardness, (or high-tech ceramic as an alternative).
Durable ring materials designed for long-lasting wear resistance.long-lasting wear resistancefor demanding production environments.
A37-pin connectoron the back panel enables convenient integration with automated production systems.
Efficient machine operation helps reduce energy usage while maintaining consistent printing performance.
Multi print functions: Two pickups one print or just a cycle of two, three prints lets you print on dark and/or absorbent surfaces
Operates at low pressure to support smooth and controlled printing performance.
ELECTRO-PNEUMATIC INK CUP SERIES
Standard Pad Printing Machines

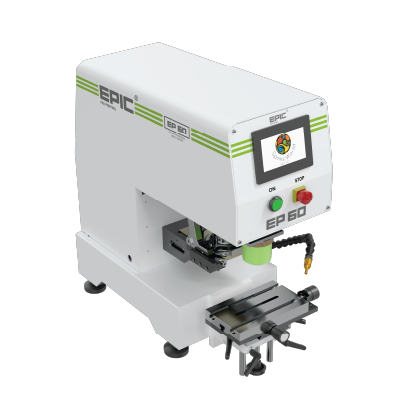

EP 60
| Number of Colors | 1 |
| Ink -/doctoring cup (mm) | 60 |
| Force of pressure (N) | 750 |
| Drive | Electro-pneumatic |
| Control | PLC |
| User interface HMI | 4" |

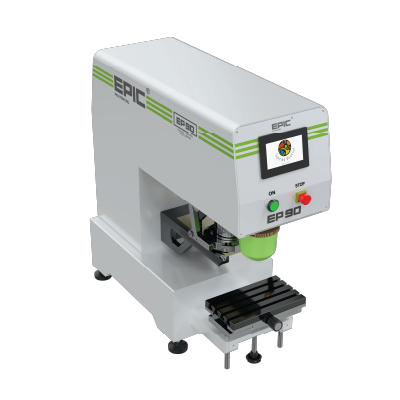

EP 90
| Number of Colors | 1 |
| Ink -/doctoring cup (mm) | 90 |
| Force of pressure (N) | 1200 |
| Drive | Electro-pneumatic |
| Control | PLC |
| User interface HMI | 4" |

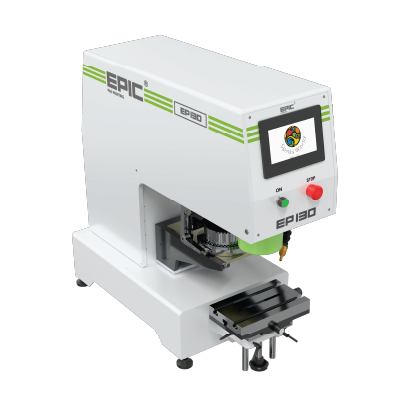

EP 130
| Number of Colors | 1 |
| Ink -/doctoring cup (mm) | 130 |
| Force of pressure (N) | 3000 |
| Drive | Electro-pneumatic |
| Control | PLC |
| User interface HMI | 7" |
Multicolor Pad PrintingMachines

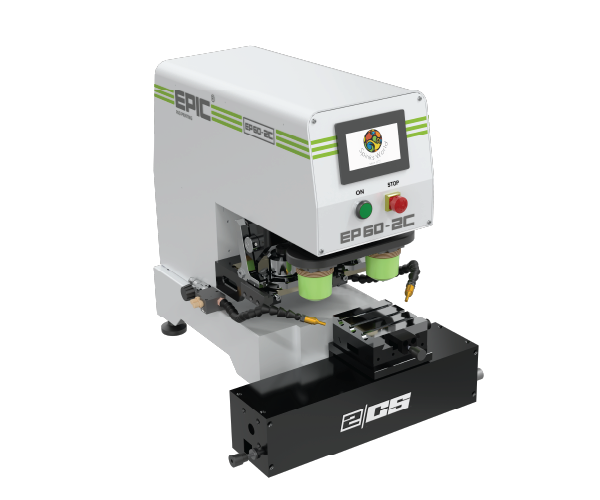

2 Color Models
Available Models:60 / 90 / 130

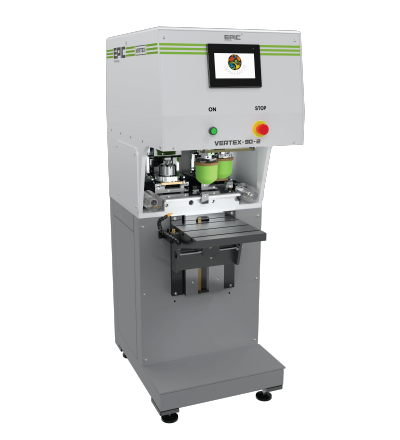

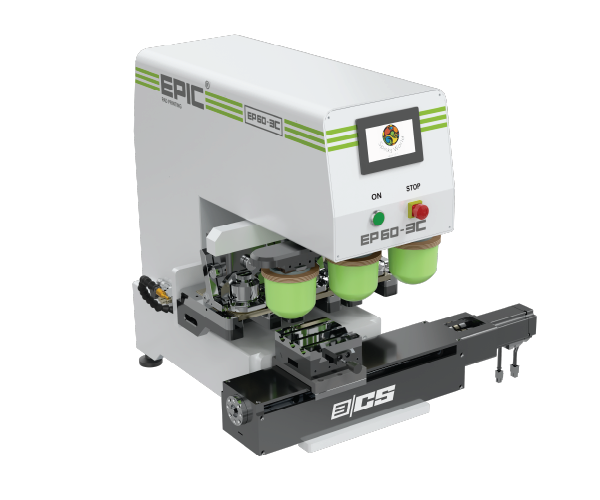

3 Color Models
Available Models:60 / 90 / 130
4 Color Models
Available Models:60 / 90

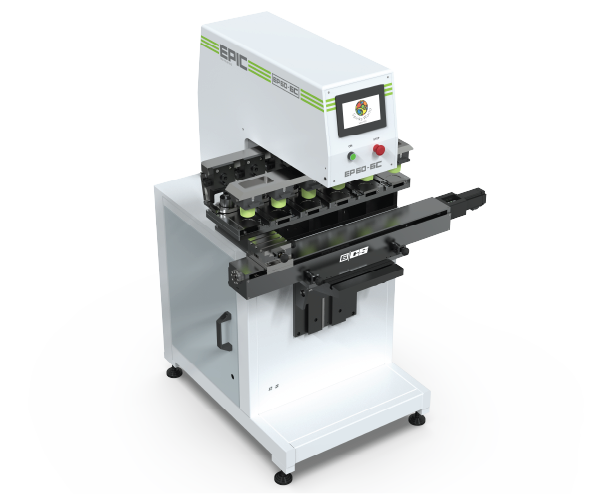

6 Color Models
Available Models:60 / 90
SpecialModels

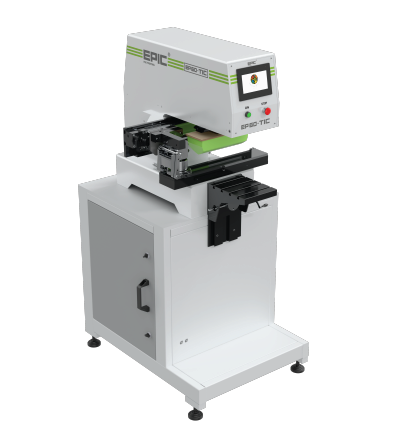

EPIC TIC
Print cup diameter(mm)
60/65/90/95/130
Print Lenght(mm)
250/350/450/550

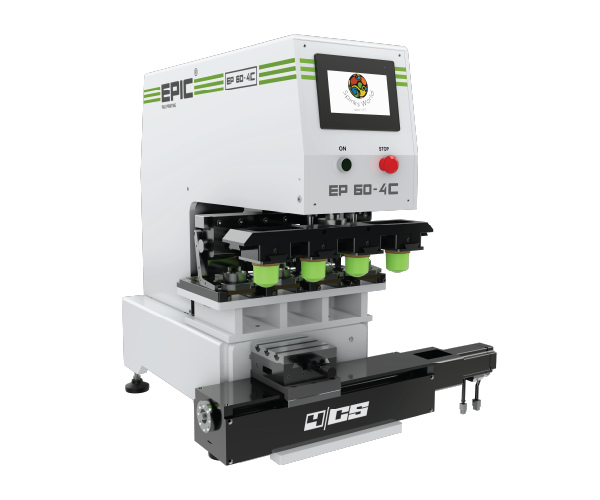

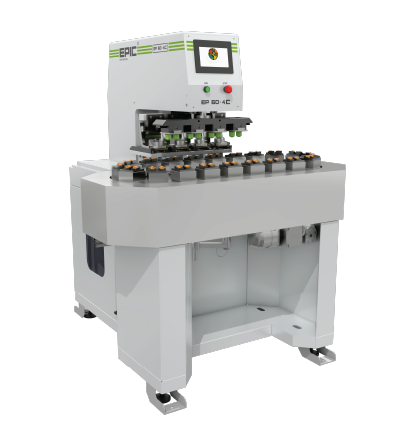

Semi-automatic 4-Color Pad Printing Machine with Oval Indexer
Available Models:60 / 90

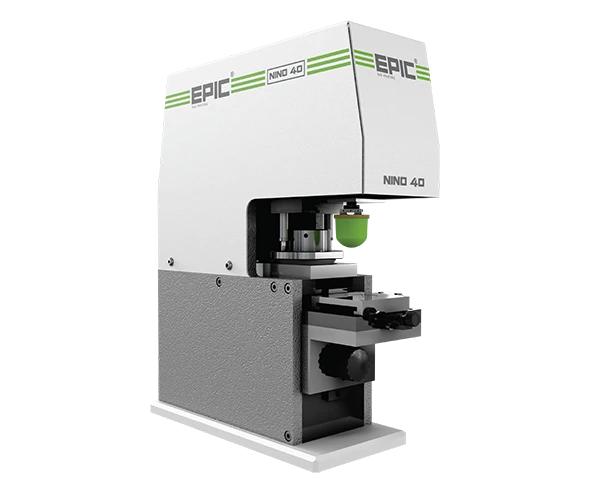

Meet the EP NINO 40
EPIC also offers the NINO 40, the world’s smallest electro-mechanical pad printing machine, perfect for small prints on toys. Powered by a 12V DC supply, this portable, air-free machine delivers crisp, micro-precise details without the need for bulky air compressors.
12V
DC Power
Air-Free
No bulky compressor
Accessories

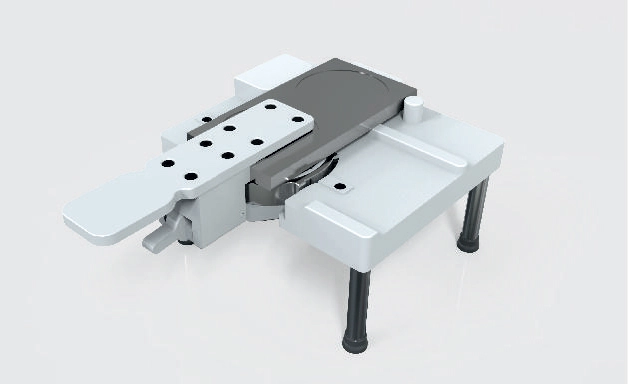

Quick Change Over System

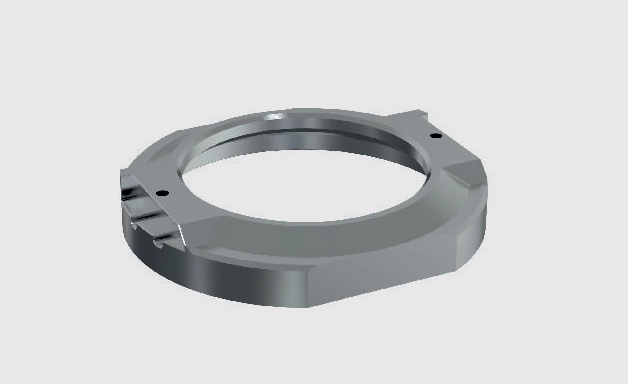

Pressure Rings

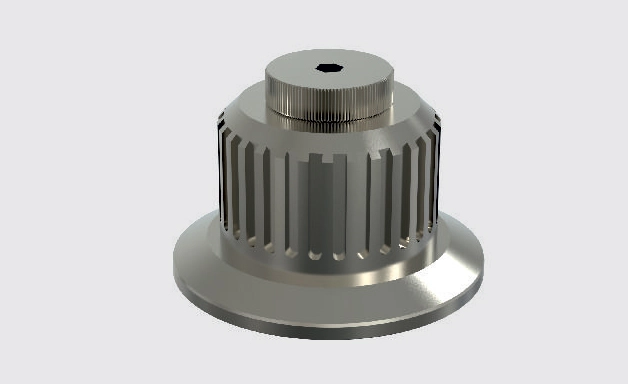

New Improved Metallic Doctoring Cup
Media
EPIC 4 color Pad Printing on Golf Ball
EPIC Printing on Golf Ball
EPIC 4 COLOR Printing on toys | Pad printing machine | Printing machine for toys

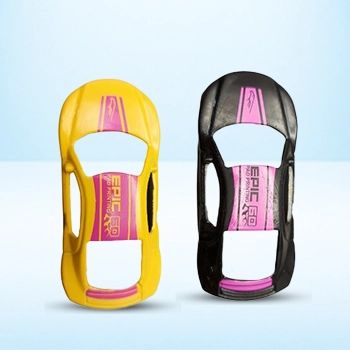

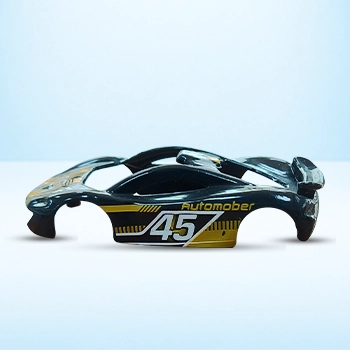

EPIC Printing on Car Toys 2
FAQ's
Looking for a pad printing machine for toys?
Get in touch with Spinks World today to explore our high-precision EPIC series, request custom sample prints, or schedule a live demo for your production line!
